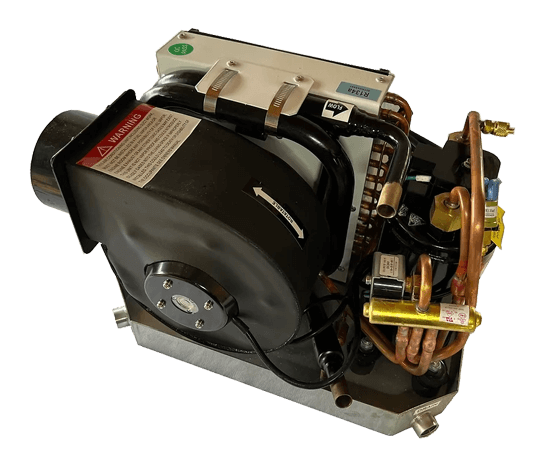

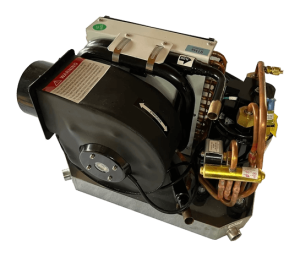

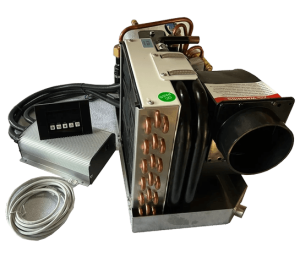

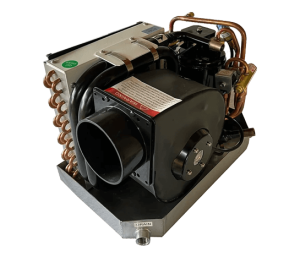

The ECO Series is a premium compact solution for demanding environments with focus on power conservation.
$3,549.00
The ECO Series is a premium design to maximize efficiency while minimizing power demands in your DC system. Its specialized components ensure that energy usage is optimized, making it an ideal choice for energy-conscious applications. The compact design of the ECO Series allows for easy integration into various setups, saving space without compromising on performance. Overall, this series emphasizes a balance between high performance and low energy consumption, making it a prudent investment for those looking to enhance their system’s efficiency.
Application: Cooling/Heating to cabin in Marine Environment. Can be added to any boat or to replace existing unit(s) when converting a system from AC voltage to DC voltage. Popular choice for energy conscious situations.
Operating Voltage: 48v DC
This unit is designed for up to 3200 cubic feet
– Multiply your rooms Width x Height x Length = cubic footage
Cooling BTU: 16000
Heating BTU: 17000
Seawater Flow: 0.6 m3/h
Air Flow: 600 m3/h 353.14 cuft/m
Dehumidification Capacity: 1.0 L/h
Noise Level: <50 dB(A)
Width: 19.75” in
Height: 13.25″ in
Depth: 12.5″ in
Net Weight: 61 lb
Refrigerant Type: R134A
Refrigerant Capacity: Approx 500g
Air Duct Diameter: 4” / 100 mm
Sea Water Pipe Diameter: 16 mm
Condensate Water Pipe Diameter: ½”
Disclaimer: During installation, each unit must be electrically grounded to prevent damage. Use a grounding wire to connect the unit frame to the appropriate neutral ground.
Power Supply Demands: Unit is designed and built with a variable compressor. Unit will increase BTU output as ambient temp exceeds set temperature. As ambient temp reaches set temp, the compressor will reduce frequency and power draw. If you prefer to operate with power savings, common practice is to set the unit temp near cabin ambient temp. Reducing fan speed will further reduce consumption.
Cooling:
48v
DC 48v 20 amps (+/- %5) @ Max fan speed setting
Heating: (Heat Pump)
48v
DC 48v 25 amps (+/- %5) @ Max fan speed setting
To best maintain efficient operation, we recommend using lithium-ion batteries (LiFePO4) to maintain a consistent operating voltage. Standard Lead Acid batteries typically experience a more drastic voltage drop during discharge which will reduce the efficiency of the system.
| Weight | 61 kg |
|---|---|
| Dimensions | 19.7 × 12.4 × 13.38 cm |
| Voltage Option | 110v AC, 220v AC, 48v DC |
CONTROL FEATURES
Contents Include:
*Water pump Sold Separate
